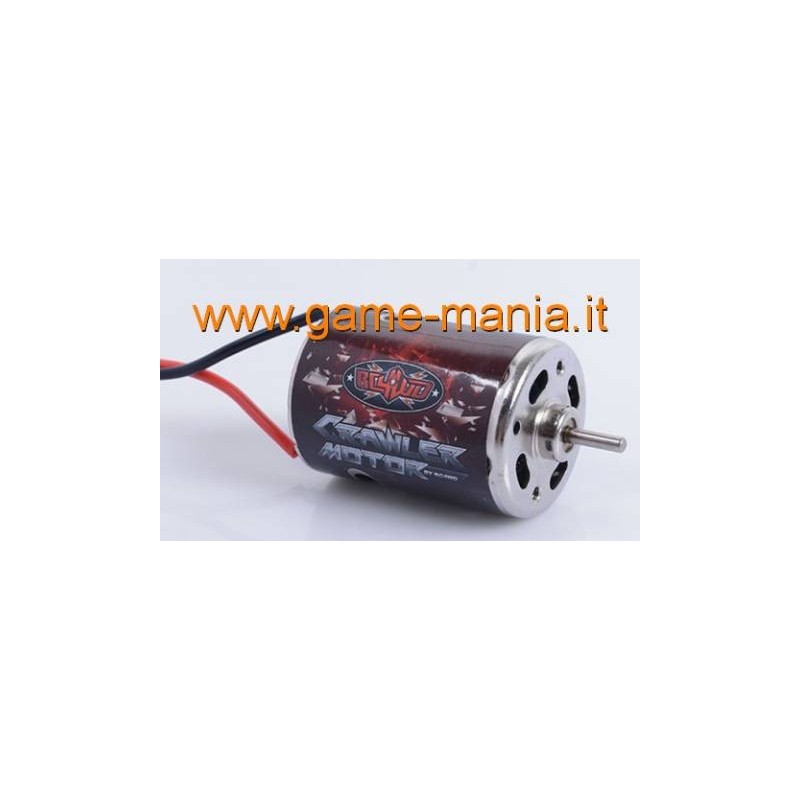

27 turns closed-endbell brushed motor by RC4WD

Z-E0067 - RC4WD closed endbell 27 turns brushed motor. Easily equip or upgrade (comes with bullet connectors. No soldering required) your scalers or offroad rig of any brand for more wheel speed (with lower torque). At a very low cost ! Needs an adequate ESC.

Specifications:

• Custom Made 540 Steel Case
• Chrome Plated Case
• Build in Capacitor for Minimizing Glitch
• High Torque Magnet and Rotor
• Small Footprint (50mm long)
• Tuned for Rock Climbing and Scale Driving
• Polished Bushings
• Body OD: 1.39in / 35.5mm
• Length: 1.96in / 50mm
• Output Shaft Length: 0.43in / 11mm
• Output Shaft OD: 0.12in / 3.1mm
• Weight: 5.57oz / 158g

Performance Specs:

• (At No Load) RPM @ 7.2V : 15000 +10? , 1.2Amp Current
• (Rated load) RPM @ 7.2V : 13600 +10?, 5.02Amp Current
• Designed Operating Temperature Range: -10°C to +60°C
• Shaft end play: 0.1mm to 0.5mm
• Noise Level: < 78DB

Performance Specs:

• (At No Load) RPM @ 7.2V : 20000 +10? , 2Amp Current
• (Rated load) RPM @ 7.2V : 18400 +10?, 7.92Amp Current
• Designed Operating Temperature Range: -10°C to +60°C
• Shaft end play: 0.1mm to 0.5mm
• Noise Level: < 78DB
