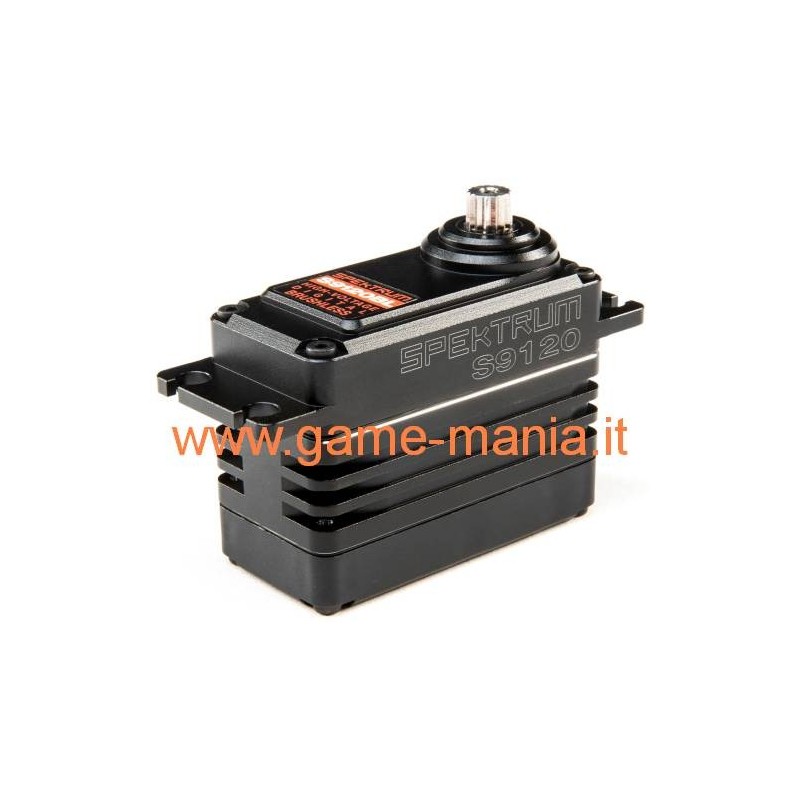

104Kg S9120BL brushless servo 8.4V for 1/5 by Spektrum
€269.90
Tax included
SPMSS9120BL -
Operating in the rough and tumble environment of 1/5 scale, a servo’s performance is pushed to the maximum. The S9120BL servo has been designed to give 1/5 enthusiasts huge torque and brushless motor precision, taking their driving experiences to a new level. Starting with a new case design with improved support for pins holding the gears, and a new aluminum top plate with re-designed bearing house, the S9120 has been design for improved durability. A new brushless motor design will give more power than any previous Spektrum servos – the high torque S9120 is rated at 1454 oz-in of torque at 8.4v. Additional improvements include a sleek new stealth black design and new thicker 18awg wire detachable connector.
| Deadband | Micro sec: <1 |
| Product Height | 1.84 in (27.2mm) |
| Motor Type | Brushless |
| Servo Operating Voltage | 6.0 - 8.4V (HV) |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Maximum Servo Speed | 0.200+ sec |
| Product Length | 2.47 in (62.7mm) |
| Connector Wire Length | 6 in (152mm) |
| Product Width | 1.18 in (30mm) |
| Type | Surface |
| Servo Size Category | Large Scale |
| Application | 1/5 scale off-road |
| Max Servo Torque | 500+ oz-in |
| Product Weight | 6.3 oz (178.6g) |
| Spline Count | 15 - Tooth |
| Maximum Servo Torque | 1173oz-in (84.47 kg-cm) @ 6.0V, 1209 oz-in (87.06 kg-cm) @ 7.4V, 1453.5 oz-in (104.66 kg-cm) @ 8.4V |
